How String Potentiometers Revolutionize Position Sensing

String potentiometers represent a significant advancement in position sensing technology, offering a unique solution that combines simplicity and precision. By converting linear motion into electrical signals through a flexible string mechanism, these devices reduce the complexities and inaccuracies commonly found in traditional sensors. Their versatility makes them suitable for a wide range of applications, from industrial automation to aerospace engineering. As we explore the intricacies of their design and functionality, the implications for future innovations in position sensing become increasingly compelling.

What Are String Potentiometers

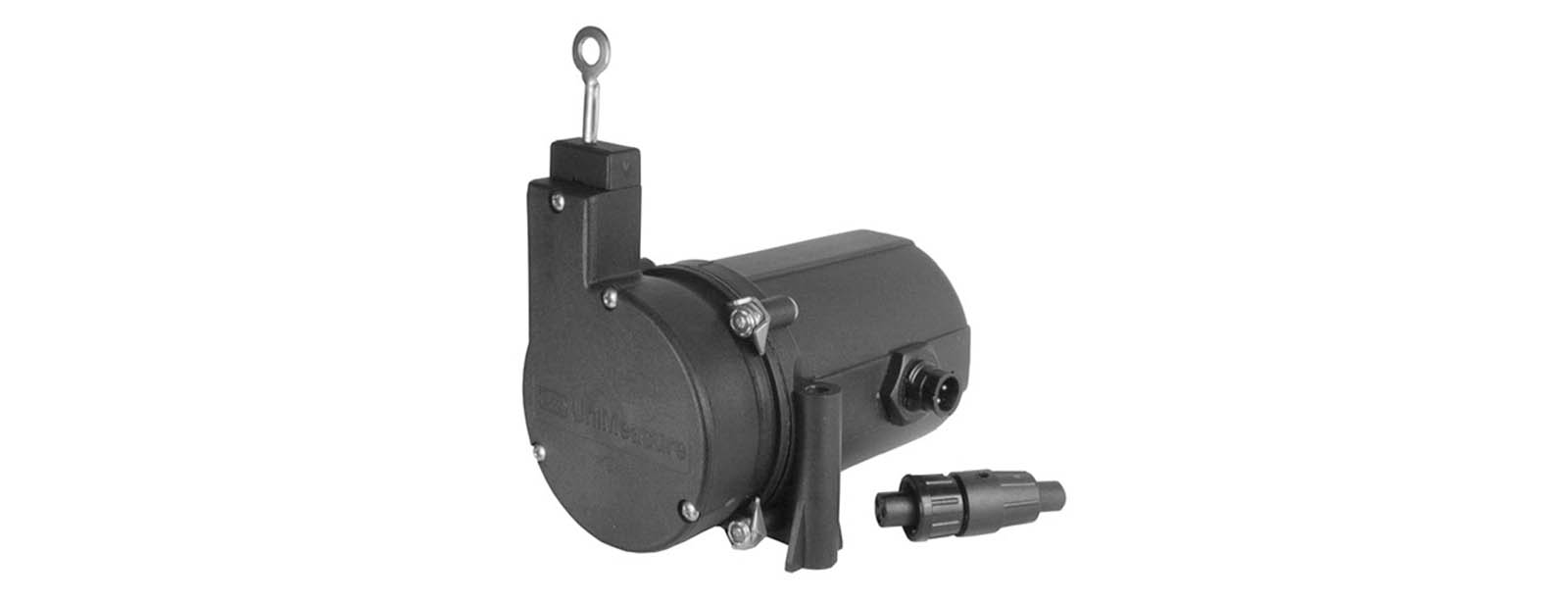

String potentiometers, often referred to as string pots, are precision devices used for measuring linear displacement. These instruments utilize a flexible string attached to a potentiometer, which translates the movement of the string into an electrical signal. This signal can then be interpreted to determine the position of an object in motion. The primary types of string potentiometers include standard, heavy-duty, and miniature models, each designed for specific applications and environments.

When considering the operational mechanisms, a comparison with encoders is essential. While both string potentiometers and encoders serve the purpose of position sensing, their methods differ significantly. Encoders, which can be rotary or linear, employ optical or magnetic principles to detect position, often providing higher resolution and accuracy. In contrast, string potentiometers are typically simpler and easier to install, making them suitable for applications where space is limited or where quick installation is needed.

Advantages Over Traditional Sensors

Compared to traditional sensors, string potentiometers offer several distinct advantages that enhance their applicability in various settings. One of the primary benefits is their accuracy improvement. String potentiometers provide precise measurements of linear displacement due to their direct connection between the moving element and the potentiometer's wiper. This design minimizes errors often associated with mechanical linkages in traditional sensors, resulting in reliable and consistent readings.

String potentiometers demonstrate significant cost efficiency. Their simple construction allows for reduced manufacturing costs, making them a more economical choice for applications requiring position sensing. The materials used in string potentiometers are often less expensive than those required for complex traditional sensors, which translates into lower overall system costs. Furthermore, the ease of integration into existing systems can lead to reduced installation and maintenance expenses, contributing to their cost-effective nature.

Key Applications In Industry

Utilizing their unique design and functionality, string potentiometers are increasingly employed across various industries for precise position sensing applications. In the realm of robotic arms, these sensors provide critical feedback for accurate motion control, enabling enhanced performance in automation tasks. Their compact size and reliable measurements make them ideal for integration into robotic systems, ensuring precision in position tracking.

In automotive testing, string potentiometers play a vital role in evaluating suspension systems, throttle positions, and other dynamic components. By accurately measuring linear displacements, they assist engineers in optimizing vehicle performance and safety.

The medical device industry also benefits significantly from string potentiometers, where they are utilized in applications such as patient positioning systems and robotic surgical tools. Their ability to deliver precise measurements ensures that medical devices operate with the utmost reliability and accuracy, ultimately enhancing patient care.

In aerospace applications, string potentiometers are essential for monitoring control surfaces and landing gear positions. Their robustness and accuracy contribute to the safety and efficiency of aircraft operations. As industries continue to evolve, string potentiometers will remain a pivotal technology in the advancement of position sensing solutions.

Operating Principles Explained

At the heart of string potentiometers lies a straightforward yet effective operating principle that enables precise position sensing. These devices utilize a string mechanism, which is typically a nylon or steel cable, to translate linear motion into an electrical signal. When the string is extended or retracted, it interacts with a wiper that moves along a resistive track. This movement generates a resistance variation proportional to the position of the wiper, thereby providing an accurate measurement of displacement.

The string mechanism's design allows for significant flexibility in various applications, from industrial automation to robotics. As the wiper travels along the resistive element, the change in resistance is converted into a voltage signal, which can then be interpreted by control systems or data acquisition devices. This capability ensures that even minute changes in position can be detected with high precision.

The simplicity of the string potentiometer's design contributes to its reliability and longevity in demanding environments. With minimal mechanical wear and tear, these sensors are well-suited for applications requiring consistent performance over extended periods. Thus, the operating principles of string potentiometers establish them as vital tools for accurate position sensing in a myriad of fields.

Installation And Maintenance Tips

Successful implementation of string potentiometers hinges not only on their operating principles but also on proper installation and maintenance practices. To ensure optimal performance, adhere to specific installation guidelines. First, mount the device securely to prevent movement that can lead to measurement inaccuracies. Ensure that the string can extend and retract freely without obstruction. Proper alignment is crucial; the potentiometer should be positioned so that the string follows a straight line without excessive bending.

In terms of maintenance practices, regular inspections are essential. Check for wear and tear on the string, as fraying can compromise accuracy. Additionally, ensure that the mounting hardware remains tight and secure. Lubricate moving parts periodically to reduce friction and prolong the lifespan of the device. Environmental factors, such as humidity and dust, should also be considered; protect the potentiometer from extreme conditions that could affect its performance.

Future Trends In Position Sensing

As advancements in technology continue to reshape the landscape of position sensing, industry experts are increasingly focusing on innovations that enhance accuracy, reliability, and integration capabilities. The future of position sensing is poised to be significantly influenced by emerging technologies, such as IoT (Internet of Things) and artificial intelligence. These developments are driving the evolution of smart sensors, which can process data in real-time and adapt to changing environments.

The integration of smart sensors into various applications will allow for more precise measurements and improved decision-making processes. For instance, in manufacturing settings, these sensors can facilitate predictive maintenance by monitoring equipment conditions and predicting failures before they occur. Additionally, advancements in wireless communication technologies are set to enhance the connectivity and interoperability of position sensing systems, enabling seamless data integration across platforms.

The rise of miniaturization in sensor technology will lead to more compact and versatile solutions, making them suitable for a broader range of applications. As these trends unfold, industries will benefit from improved position sensing capabilities, ultimately leading to enhanced operational efficiency and innovation across sectors.

Contact A String Potentiometer Supplier Today

String potentiometers serve as the compass guiding industries toward precision and reliability in position sensing. Their unique design, akin to a finely tuned instrument, translates linear movements into meaningful electrical signals with minimal distortion. As technology continues to evolve, these devices will not merely adapt but flourish, much like a seed that, with the right conditions, grows into a robust tree. The future of position sensing is bright, with string potentiometers at its helm, steering innovation across diverse fields.

UniMeasure Inc. stands out as a leader in the precision measurement industry, consistently demonstrating a commitment to innovation, quality, and customer satisfaction. With its diverse range of products and solutions tailored to meet the specific needs of various sectors, the company has established a solid reputation for reliability and accuracy. As UniMeasure Inc. continues to advance its technology and expand its market presence, it remains well-positioned to tackle the challenges of the future and drive growth in an ever-evolving landscape. The company's focus on research and development, coupled with its dedication to exceptional service, ensures that it will maintain its competitive edge and continue to be a trusted partner for clients around the globe.
